TCMT Remote Reservoir Rear Shocks for Harley Touring (2014–Mid-2023)

Description

Position: Rear
Shock absorbing hole distance 330 mm-335 mm adjustable.
Compression Damping 26 levels adjustable.
Rebound Damping 43 levels adjustable.
Rotating the reservoir can adjust the angle of the connector.
Using oil-free bearings on upper and lower fixed positions.
Preload setting 50mm adjustable height on both shocks
Standard 13″ Height. 14mm Diameter Shock Absorber.
Buffer rubber rings provide improved plush ride quality, control, and resistance to bottoming out.
No tools are required for compression and rebound damping adjustments, It is Easy to install and calibrate
The reservoir features a black hard-coat finish with stainless steel lines for performance style.
Damping Setting Reference: First, turn the adjuster counterclockwise until it stops (this is position 0), then count the clicks while turning the adjuster clockwise to the desired setting.
Preload settings can be adjusted to suit riding preferences based on rider, passenger, and luggage weight. The following table is a reference for adjustment benchmark， you can make appropriate adjustments according to your weight and driving habits.

When adjusting the preload setting, it is best to keep the motorcycle suspended. Rider and passenger also need to leave the seat. Then follow the instructions in the diagram, loosen the safety screw first, then rotate the adjustment spring, and tighten the safety screw after adjustment.

Fitment:
Fit For ’14-later Touring models (except FLHTKL, FLHTCUL, ’23-later FLHXSE, FLTRXSE, ’24-later FLHX, FLTRX, ’24 FLTRXSTSE and ’25-later FLHXU and FLTRXRRSE)

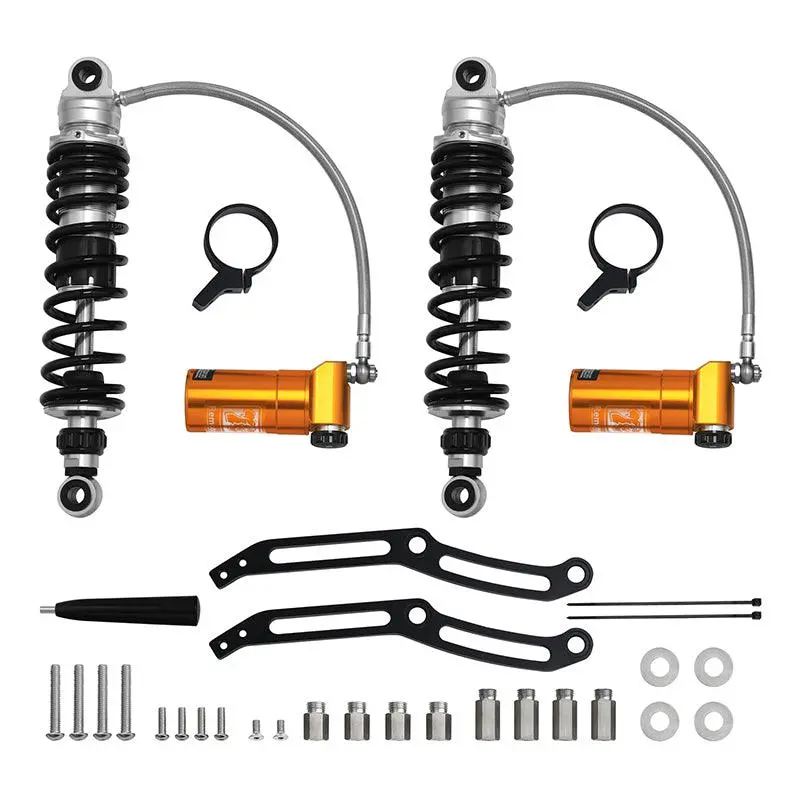

Package Included:
1 Set of Rear Shocks
